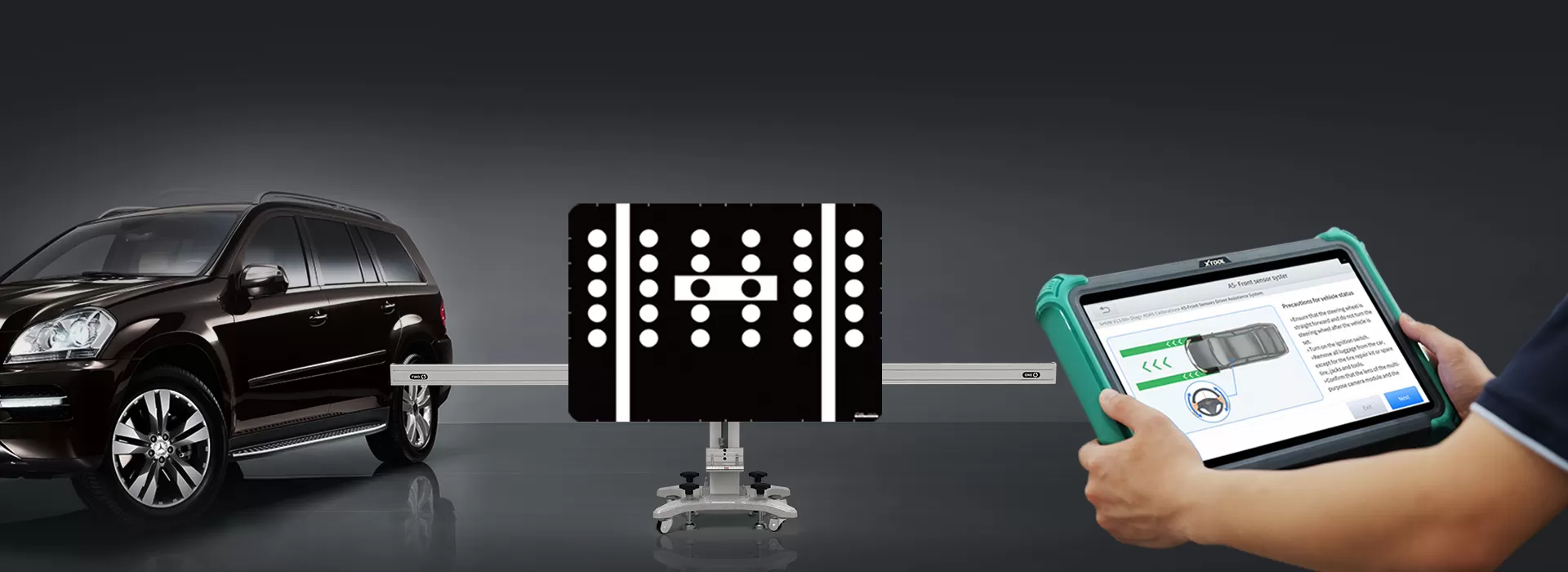

XTOOL ADAS calibration systems are designed to ensure millimeter-level precision for radar, camera, and sensor alignment in modern driver assistance systems. Supporting major functions such as ACC, LDW, BSD, AVM, and NVS, these tools cover popular vehicle brands including Mercedes-Benz, BMW, Audi, Toyota, Ford, and more. The modular calibration frames, laser alignment tools, and measurement scales help technicians achieve fast and accurate calibration in any workshop. XTOOL ADAS calibration tool ensures every sensor works in its optimal position, restoring full ADAS functionality and guaranteeing safer driving.
Use the laser alignment device to mark the vehicle's central reference line on the ground, ensuring symmetric alignment.
Move the calibration frame to align with the centerline using built-in measurement scales for accurate placement.
Set the calibration board to the manufacturer’s specified height and verify it remains parallel to the vehicle axis.
Use the laser cross to fine-tune the board's position until the projected lines match the vehicle's center point.
Connect an XTOOL diagnostic tablet and follow on-screen prompts for guided radar or camera calibration.
Check results on the tablet, confirm all parameters meet OEM standards, and save the calibration report.
They perform accurate alignment of vehicle cameras, radars, and sensors used in ADAS features such as LDW, ACC, BSD, and AVM.
