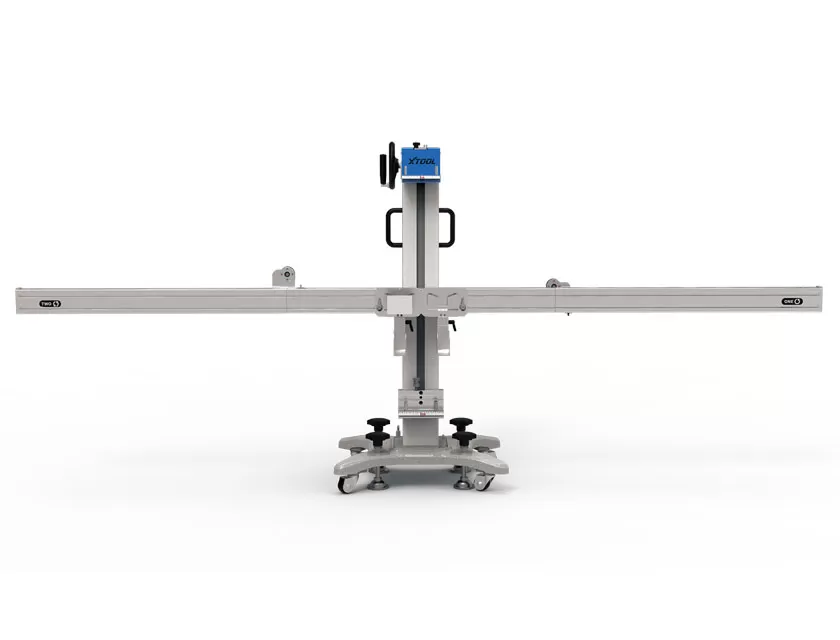

ASCT-1000 is an intelligent ADAS calibration system launched by XTOOL, integrating OE-level calibration parameters, covering most ADAS-equipped vehicles on the market, and supporting systems such as ACC (Adaptive Cruise Control), LDW (Lane Departure Warning), AVM (360° Surround View System), BSM (Blind Spot Monitoring), NVS (Night Vision System), and others. The self-developed centering fixture allows for single-person operation, with centering completed in 5-10 minutes, enhancing calibration efficiency and accuracy.
Integrates OE-level calibration parameters, covering most ADAS-equipped vehicles on the market
Supports mainstream ADAS systems such as ACC, LDW, AVM, BSM, and NVS
Self-developed centering fixture, centering completed in 5-10 minutes, easy operation
Line laser alignment method, millimeter-level full vehicle calibration, high accuracy
Foldable bracket design, occupies less space, easy storage
Supports single-person operation, improving work efficiency
Applicable to various vehicle models, enhancing service capability
Improves calibration efficiency, saving repair time
Voltage | 3-5V |
Operating Current | 240mA |
Power Supply | 0.51-0.57W |
Wavelength | 520nm |
Beam shape | LINEAR WIDTH: 10M < 5mm |
Radiant Power | 0.5mw-1mw |
Lens Angle | 110 °/Glass Cylinder Mirror |
Interface | DC, RJ45, OB15, USB3.0 |
Beam Divergence | ＜0.5mrad |
Light Source & Grade | Laser, level 2 |
Installation Accuracy (Centering Clamp) | ±0.1° |
Working Temperature | -20℃ to﹢65℃ |
Storage Temperature | -40℃ to﹢85℃ |
