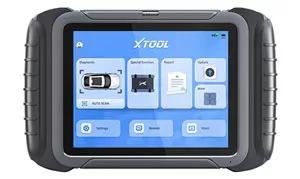

XT80 is smart diagnostic system designed for mechanics, electricians, and auto repair shops. It leverages DoIP (for Benz, Jaguar, Land Rover, BMW) and CAN FD (for GM) protocols to deliver OE-level diagnostics for all systems on vehicles. Key features include topology auto-scanning, DTC read/erase, live data, freeze frame, bi-directional controls, AutoScan ID, and optional ADAS calibration. With 98% vehicle coverage, it supports 85+ brands and over 10,000 models.
8-inch HD touchscreen with powerful quad-core 1.5 GHz processor ensures fast responsiveness
Built-in 5000 mAh battery and rear camera allow on-site diagnosis and recording
Supports DoIP and CAN FD protocols, covering vehicles like Benz and BMW
Topology auto-scanning enables rapid system structure and fault area detection
Includes DTC read/erase, live data, and freeze frame for comprehensive diagnostics
Offers bi-directional control, coding, and adaptations for enhanced repair flexibility
AutoScan vehicle identification streamlines the workflow
Covered 98% of vehicles, compatible with 85+ brands and over 10,000 models
Operating System | Android 10 |
Processor | 4 Core 1.50GHz |
Memory | 4G RAM, 64G ROM |
Display | 8-inch, 1024×768P |
Communication Method | Wired |
Connectivity | Type-C, USB 3.0 |
Camera | 8.0 Megapixel, AF with Flashlight |
Battery | 5000mAh, 7.2V |
Auto Input/Output | Microphone, Speaker |
Working Voltage | 9-36V |
Working Temperature | 0 to 40℃ |
Storage Temperature | -40 to 60℃ |
Humidity | <90% |
Dimension (L×W×H) | 274.0×175.0×33.8 mm |
Compatible Protocol | UDS, KWP2000, K_Line/L_Line, CAN/CANFD, DoIP, SAE J1939, SAE J1708, SAE J1587, SAE J1850, etc. |
