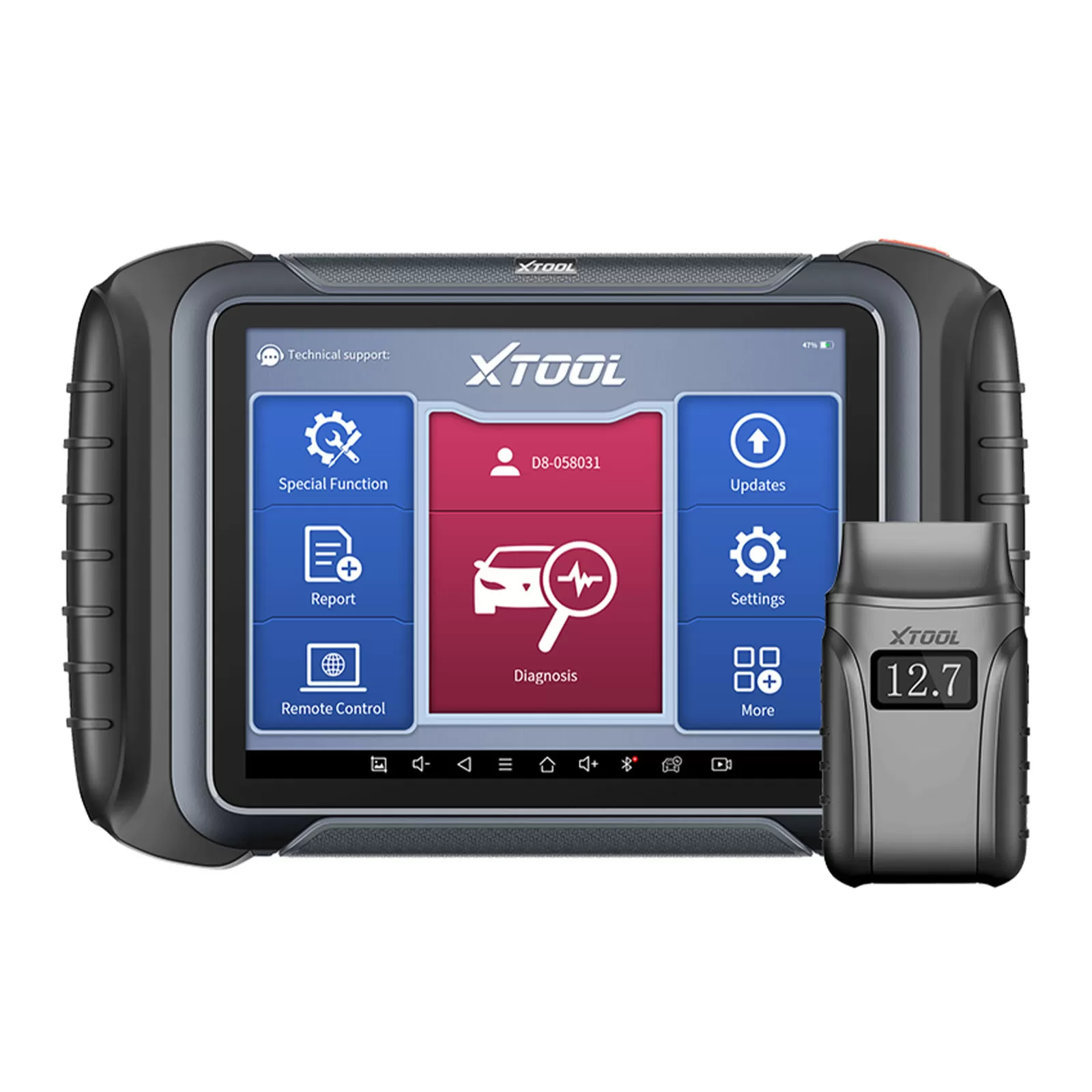

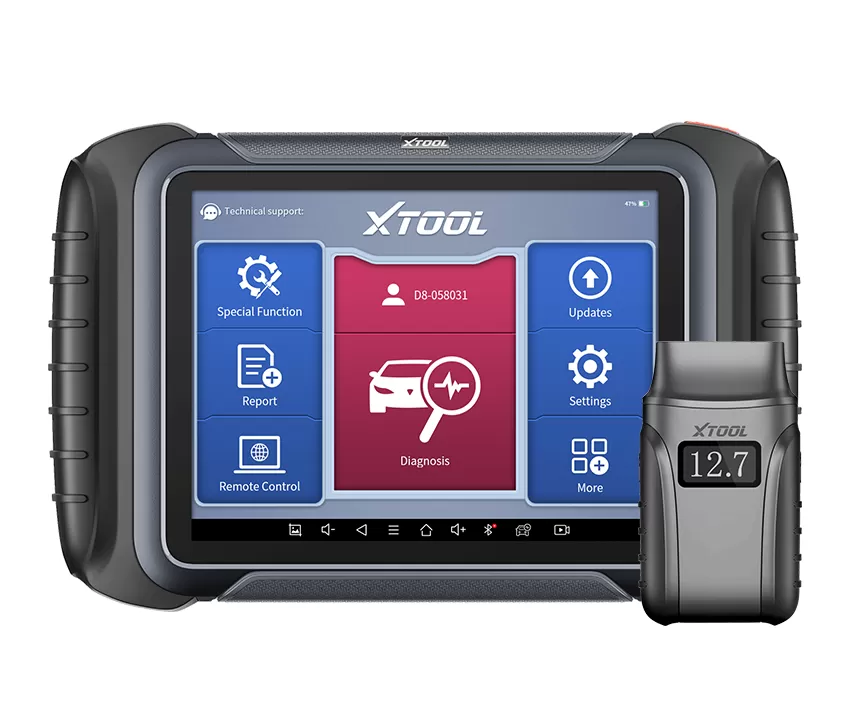

D8BT is an automotive smart diagnostic system with 8 inches LCD display, which is designed for mechanics, electricians, and car maintenance shops. 41 common special functions are supported, such as throttle matching, ABS bleeding, Oil reset, EPB test, SAS, BMS, Injector coding, DPF regeneration, and TPMS reset.
Supports AI-powered automatic analysis of vehicle model, mileage, current fault codes, and other data, and provides the recommended solutions.
Support Offline Coding for BENZ, Mitsubishi, ad VWG Programmable Module Installation for Ford, Lincoln and Mazda.
Include the most popular maintenance functions, like ABS Bleeding, DPF regeneration, Throttle, Injector Coding, Oil Reset, EPB, etc.
Support for accessing the security gateway for FCA/Nissan models (North America only). The corresponding inspection plan will be generated based on the fault codes read, providing a solution to clear the DTC.
| Operating System | Android 10 |
| Processor | 4 Core 1.50GHz |
| RAM | 2GB + 64GB |
| Memory | 2G+64G |
| Dispiay | 8-inch, 1024×768P |
| Camera | 8.0 Megapixel, AF with Flashlight |
| Auto Input/Output | Microphone, Speaker |
| Dimension (L xWxH) | 274.0×175.0×33.8 mm |
| Communication Method | Wi-Fi |
| Connectivity | Type-C |
| Working Voltage | 9-36V |
| Battery | 5000mAh, 7.3V |
| Working Temperature | 0 to 40℃ |
| Storage Temperature | -10 to 50℃ |
| Compatible Protocol | CANFD, DolP |
