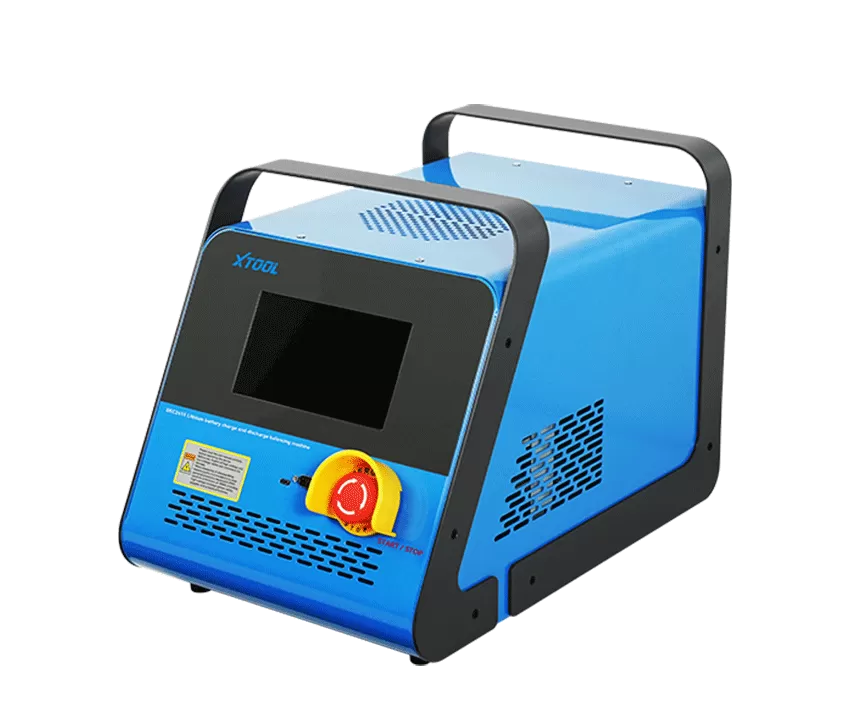

BEC2415 is a high-performance lithium battery charge-discharge balancer, supporting up to 20A charge and discharge balancing current, enhancing efficiency. Equipped with a high-definition touchscreen LCD display for intuitive operation. Powered by an ARM Cortex-M3 series processor, ensuring stable device performance. Features multiple protection functions, including undervoltage, overvoltage, overcurrent, short-circuit, and reverse polarity protection, ensuring safety for both the device and battery. Device dimensions are 490.75x314x341.5 mm, weighing 13 kg, suitable for workshops and laboratories.
Supports up to 20A charge and discharge balancing current, enhancing efficiency
Utilizes proprietary software algorithms for high-precision balancing
Compatible with various battery types, including NCM and LiFePO₄
Equipped with a high-definition touchscreen LCD display for intuitive operation
Powered by an ARM Cortex-M3 series processor, ensuring stable device performance
Features multiple protection functions, ensuring safety for both the device and battery
Device dimensions are moderate, suitable for workshops and laboratories
Supports internal resistance testing, providing comprehensive battery diagnostics
Balancing Accuracy | 1mV |
Input Voltage | AC220V/110V±15% 50Hz |
Device Size | 490.75x314x341.5(mm) |
Maximum Allowable Charge Current | 15A |
Voltage Sampling Accuracy | ±0.10%FS |
Operating Temperature | -10℃ to 40℃ |
Device Weight | 13kg |
Storage Temperature | -20℃ to 50℃ |
Power Consumption | <100W |
Balancing Voltage | 2V~4.2V (adjustable) |
