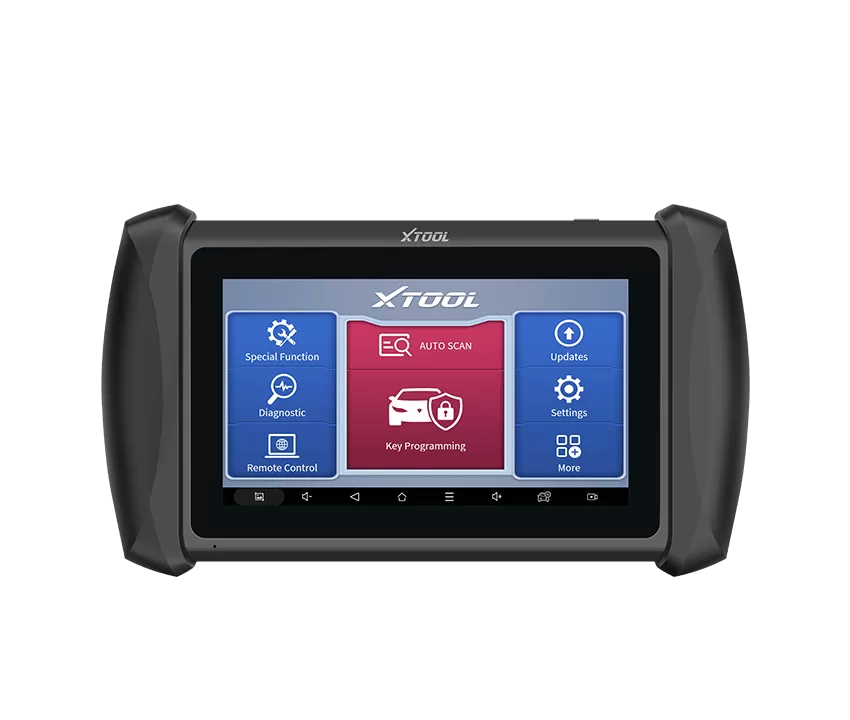

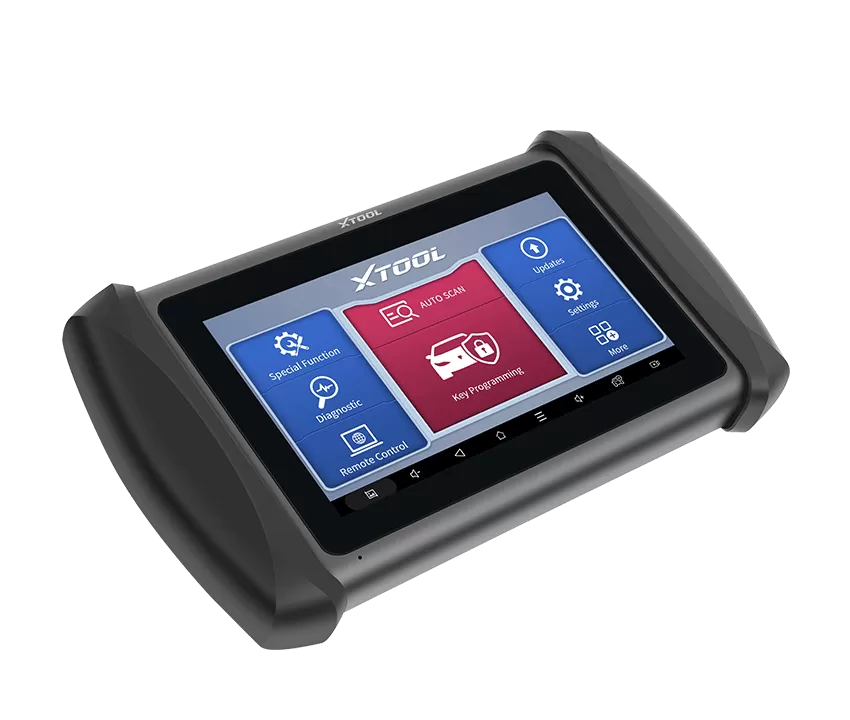

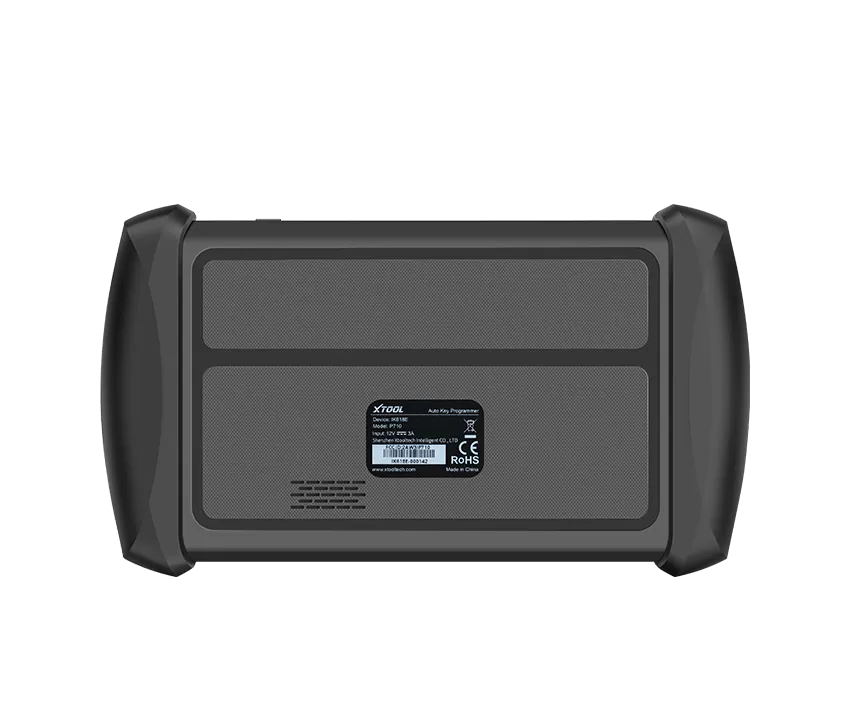

InPlus IK618E is a professional-grade tablet for automotive key programming and diagnostics. It supports reading/writing immobilizer data, PIN extraction, and both "Add Key" and "All Keys Lost" programming for multiple brands including VW, Mercedes-Benz, BMW, FCA, Land Rover/Jaguar, and GM. The device runs Android (10), featuring a 7″ 1024×600 touchscreen, quad-core 1.5–1.6 GHz processor, 2 GB RAM + 32 GB storage, and a 5000 mAh battery. It offers USB, Wi-Fi, and wired connectivity, built-in gravity and ambient light sensors, dual speakers, and microphone. It also delivers full-system diagnostics, over 30 special service functions (e.g., SAS, EPB, DPF), and comes with KC100 and EEPROM adapters for ECU programming, data extraction, module synchronization, and IMMO data backup. Compact and portable, it suits locksmiths and professional workshops.
Supports both "Add Key" and "All Keys Lost" programming modes for versatile use
Reads and writes immobilizer data and extracts PIN codes for comprehensive IMMO operations
Includes KC100 key programmer and EEPROM adapter for module synchronization and backup
Offers over 30 maintenance functions like SAS, EPB, DPF, etc., for diverse repair tasks
Delivers full-system diagnostics—read/clear codes, live data, active tests, and more
Robust hardware on Android OS ensures smooth performance (7″ screen, quad-core CPU, 5000 mAh battery)
Multiple connectivity options (USB/Wi-Fi/wired) and sensor support enhance usability
Compact, portable tablet form factor ideal for on-site use and mobile workshops
Operating System | Android 10.0 |
Processor | Quad-core 1.6GHz |
Memory | 2G RAM, 64G ROM |
Display | 7.0-inch touch screen with 1024×600 resolution |
Connectivity | USB/Wi-Fi/Wired |
Sensors | Gravity sensor, light sensor |
Auto Input/Output | Microphone, dual speakers |
Power and Battery | 5000mAh, 3.65V lithium-polymer battery |
Power Voltage | 5V |
Power Consumption | 8W |
Operating Temperature | -20 to 60℃(-4 to 140℉) |
Storage Temperature | -40 to 70℃(-40 to 158℉) |
Humidity | <90% |
Dimension (L*W*H) | 249*142*33.5mm |
