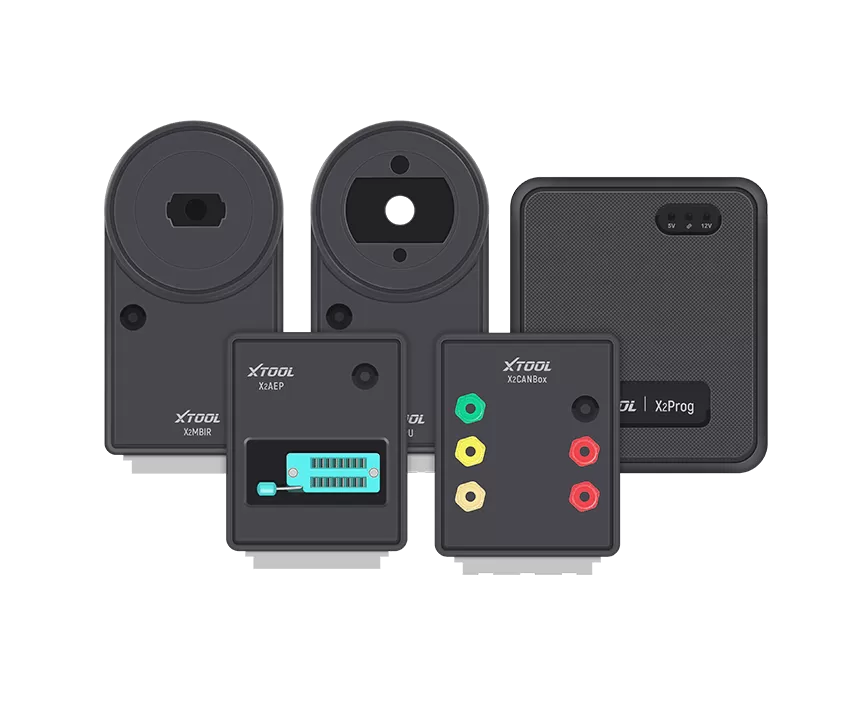

The X₂PROG SERIES is a professional-grade ECU programming and key programming solution designed for automotive experts. It supports EEPROM and MCU reading/writing, ECU data modification, and key programming across various vehicle brands. Equipped with multiple connection methods (BOOT, BENCH, and OBD), the X₂PROG Series provides precise data extraction and modification for performance tuning, ECU repair, and key programming.
Supports EEPROM and MCU reading/writing for in-depth data operations
Enables ECU data modification for tuning and repair needs
Offers key programming across various vehicle brands
Supports BOOT, BENCH, and OBD connection methods for flexible and reliable access
Provides precise data extraction and modification for high operational stability
Designed for performance tuning of ECUs
Applicable to ECU repair scenarios, enhancing service capability
Built for professional-grade use by automotive experts
X2Prog Module Functions
Base module for all plugins
EEPROM Reading/Writing (Chip off board) (with EEPROM board)
ECU Reading/Writing
(BOOT method) (with XTA004 cable)(MC9S12 not included)

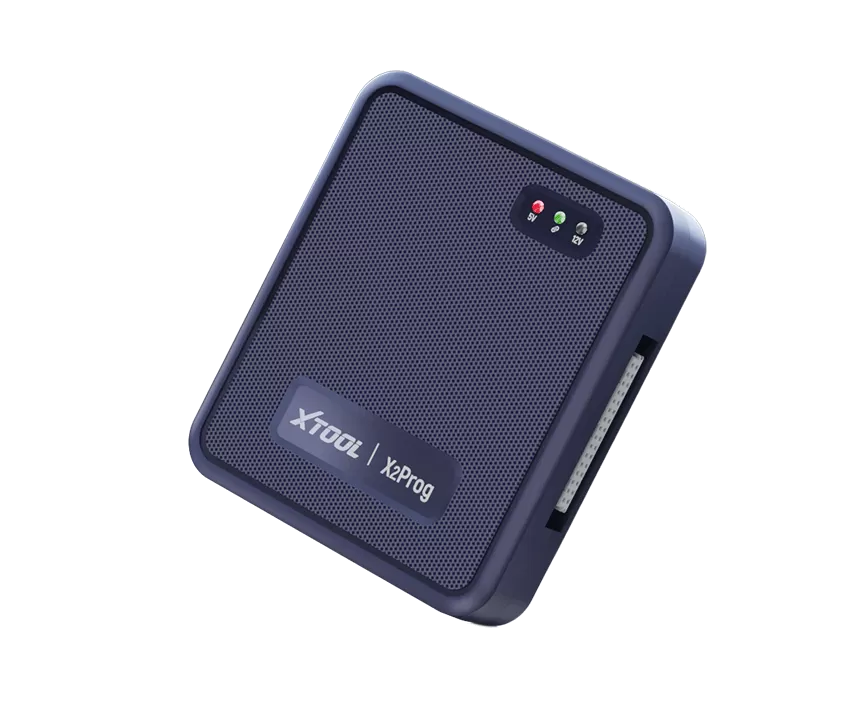

X2Prog Module Programmer
| Size | 118.6*103*26mm |
| Weight | Approx. 300g |
| Power Input | 5V 1A USB / 12V 1A DC |
| Ports | DC Power, USB Type-C, Port A (48PIN), Port B (32PIN), Port C (DB26) |
| Indicators | 5V Power / 12V Power / Communication |

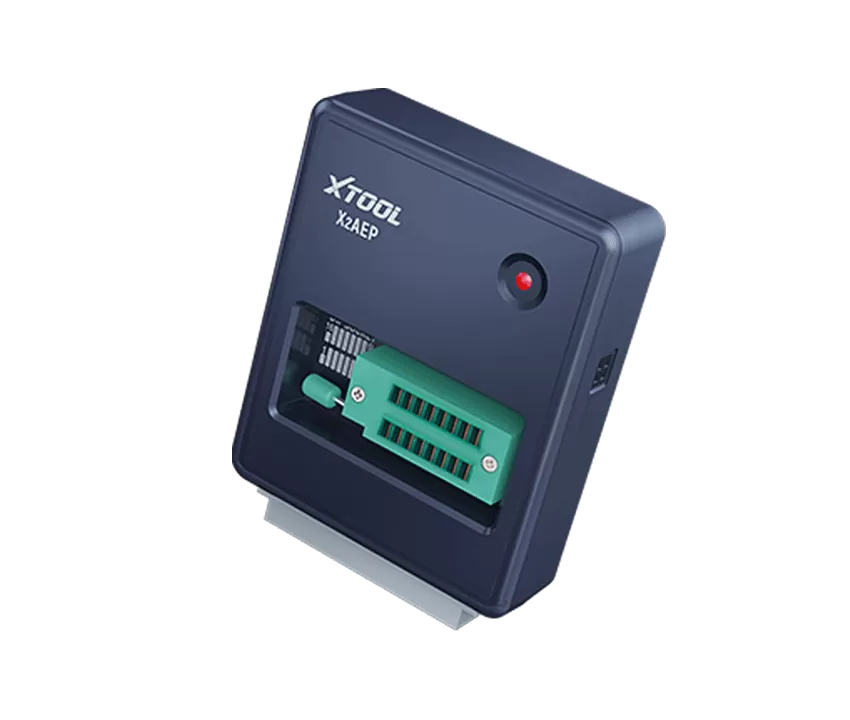

X2AEP Advanced EEPROM Programmer
| Size | 89.1*68*21.4mm |
| Weight | Approx. 150g |
| Power Input | 5V 1A USB / 12V 1A DC |
| Ports | Socket A (48PIN), 4PIN GND Socket |
| Indicators | Power |

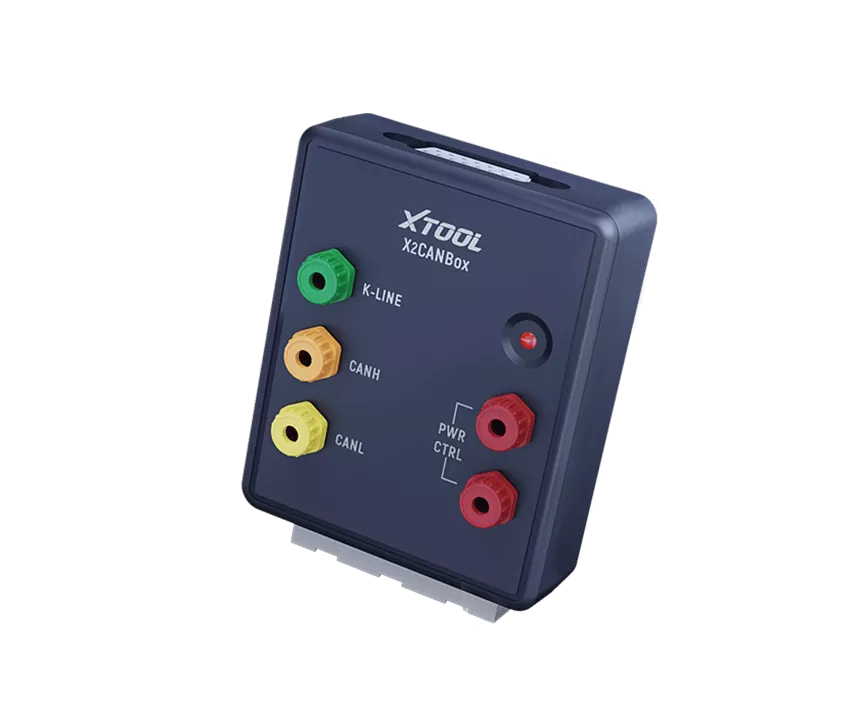

X2CANBox CAN Communication Interface
| Size | 89.5*68*29.6mm |
| Weight | Approx. 200g |
| Power Input | 5V 1A USB / 12V 1A DC |
| Ports | Socket B (32PIN), Port D (DB15), 5 Banana Plugs (CAN-H, CAN-L, PWR CTRL*2, K-LINE) |
| Indicators | Power |
| Supported Protocols | CAN (Dual), K-Line, L-Line |

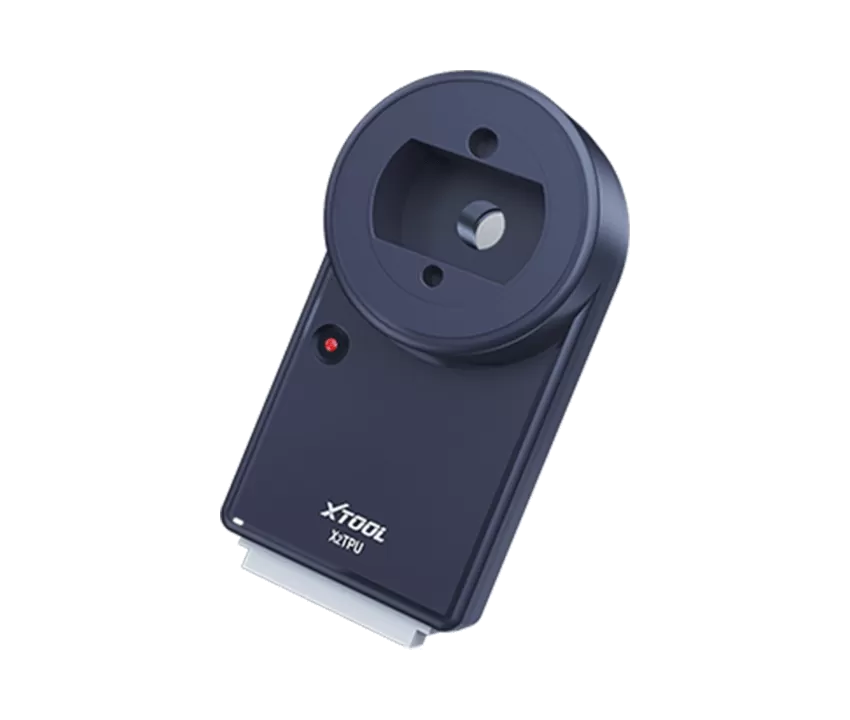

X2TPU Transponder Precoding Unit
| Size | 134.4*68*38.7mm |
| Weight | Approx. 200g |
| Power Input | 5V 1A USB |
| Ports | Socket A (48PIN) |
| Indicators | Power |

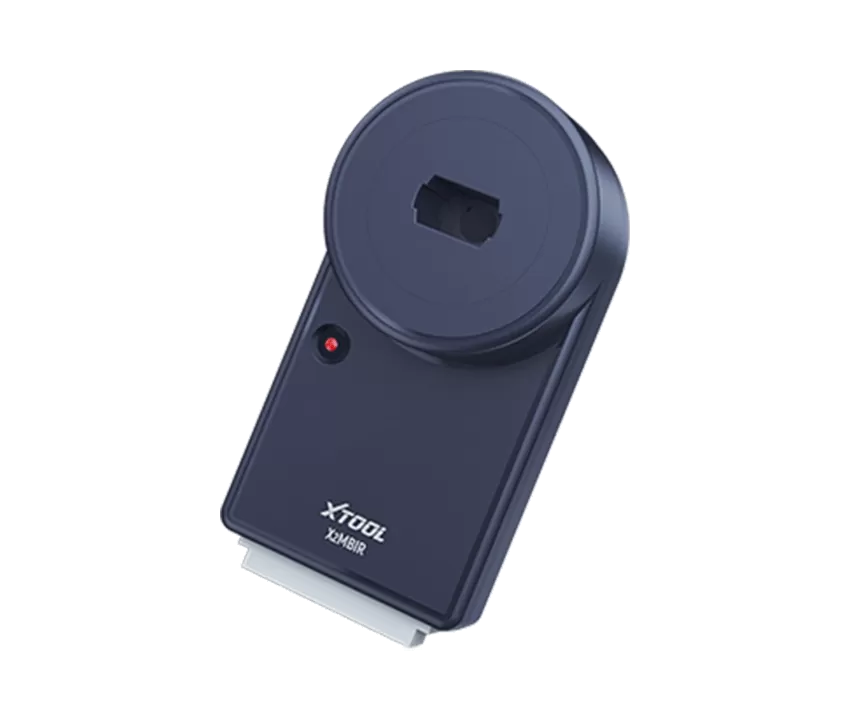

X2MBIR IR Key Precoding Unit
| Size | 134.4*68*38.7mm |
| Weight | Approx. 200g |
| Power Input | 5V 1A USB |
| Ports | Socket A (48PIN) |
| Indicators | Power |
