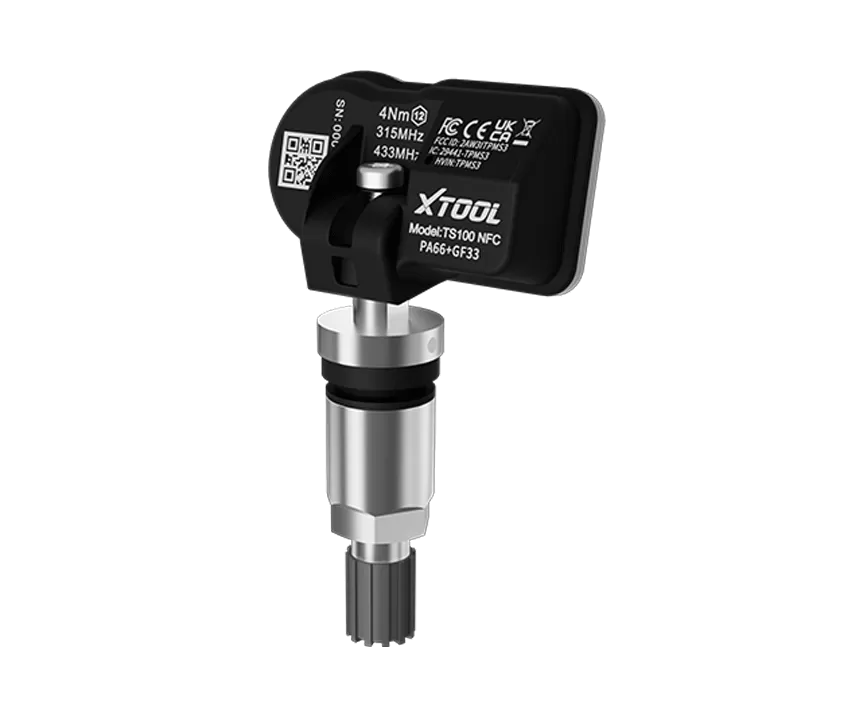

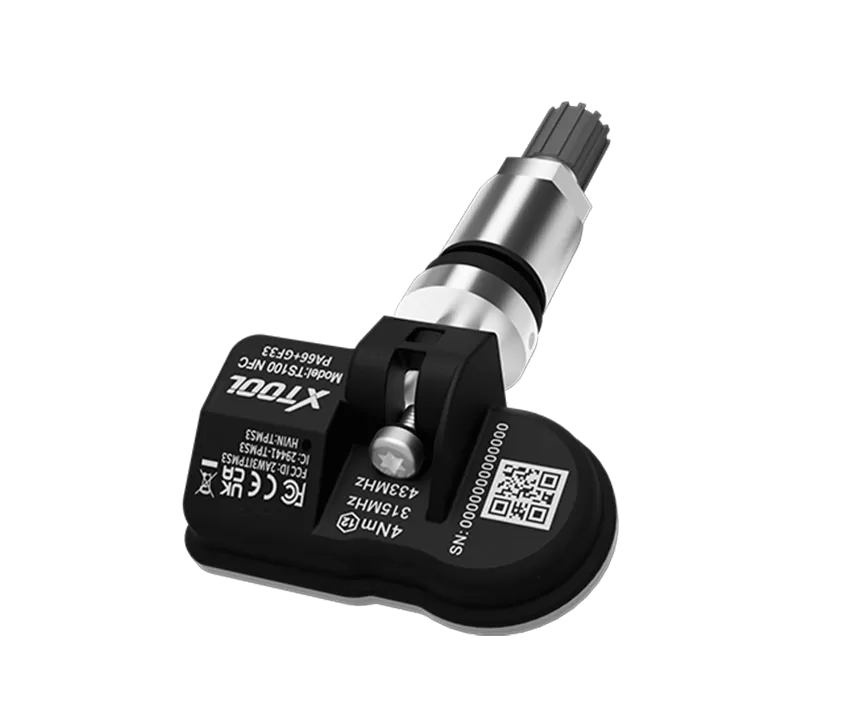

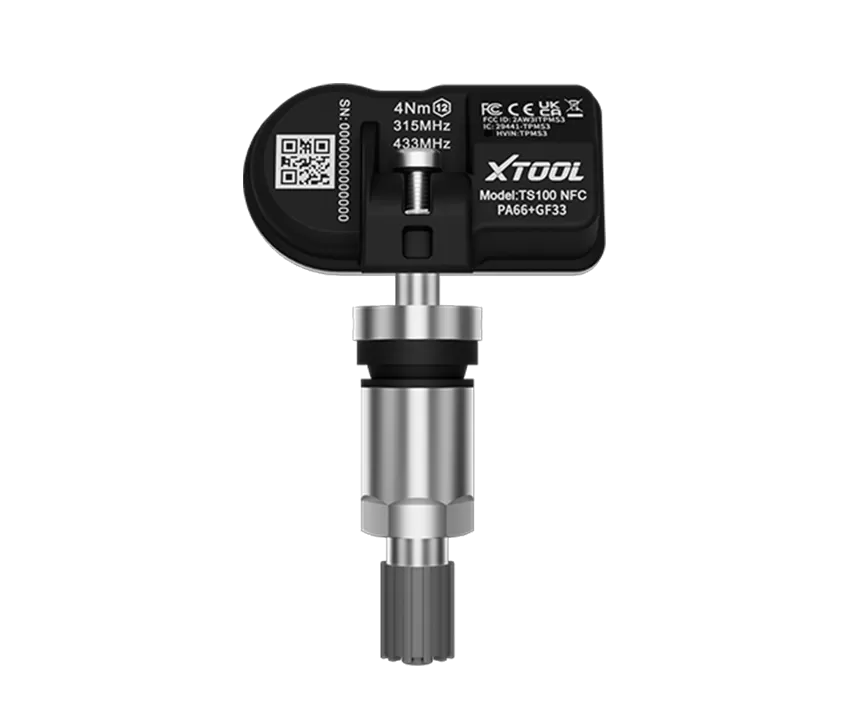

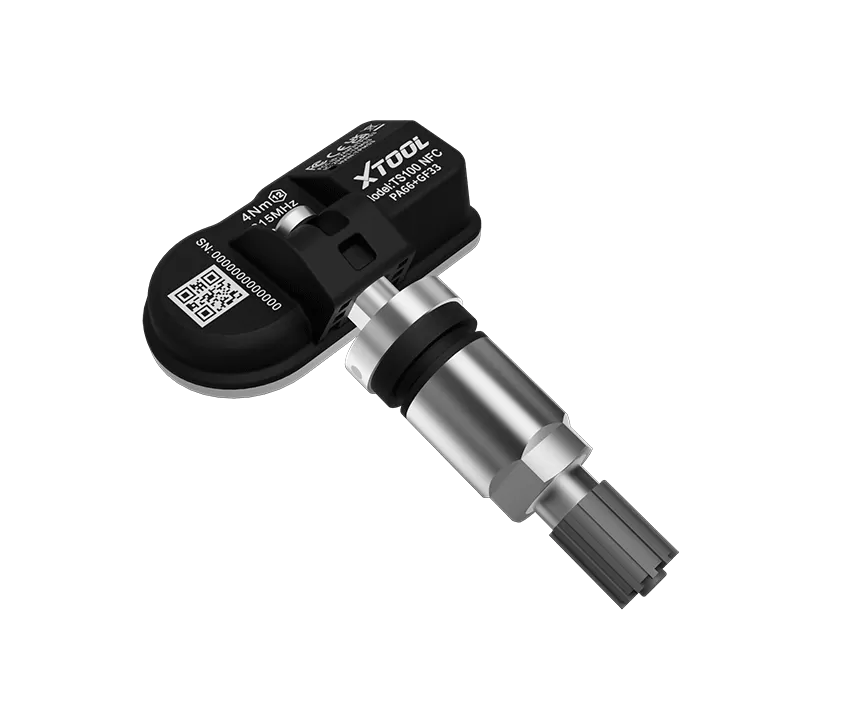

TS100 NFC is a programmable universal tire pressure sensor designed for modern automotive maintenance. It enables direct smartphone programming via NFC technology, eliminating the need for additional TPMS tools. With support for both 315MHz and 433MHz frequencies, it covers over 98% of vehicles on the market. Built with a high-performance sensor chip, it delivers OEM-level accuracy and reliability. The sensor is designed for durability, offering a service life of 3–5 years under normal conditions.
It can be programmed directly via a smartphone and the XTool TPMS app, with no extra TPMS tool required
Equipped with a high-performance sensor chip to ensure precise and reliable data, delivering performance equivalent to or better than OEM sensors
It supports both 315MHz and 433MHz frequencies, covering more than 98% of vehicles
It is designed for a service life of 3–5 years under normal conditions, reducing replacement frequency and overall maintenance costs
It features an IP67 waterproof rating, providing robust protection against water and dust ingress
It operates reliably in a wide temperature range from -40°C to 125°C
It offers a pressure accuracy of ±10kPa within a monitoring range of 0~900kPa
It features a 10° to 45° adjustable angle for flexible mounting — a design hallmark of professional tire X Tool components.
Processor | 1.2GHz Dual-core Processor |
Memory | 128M+32G |
Communication Method | Wi-Fi |
Ports | USB Type-C, MicroSD Card Slot |
Display | 5.45" 720 x 1440px |
Battery | 4500 mAh, 3.6V |
Working Temperature | 0 to 40℃ |
Storage Temperature | -40 to 60℃ |
