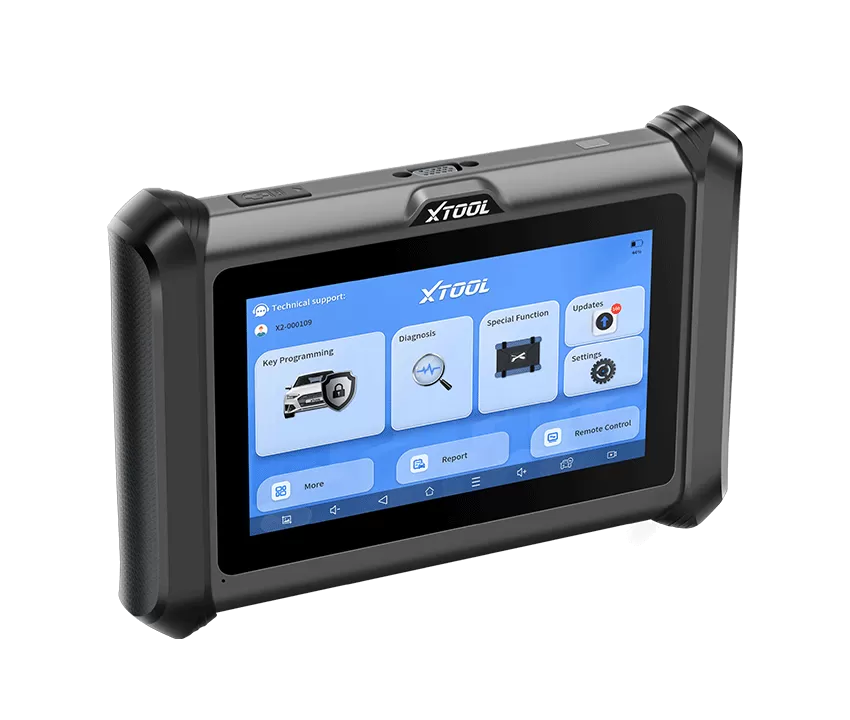

X100PADS is a professional-grade key programming tablet featuring a 7-inch touchscreen and Android 10 OS, designed for locksmiths, vehicle owners, and technicians. It supports immobilizer system operations for over 60 manufacturers and 2,000+ models, including reading/writing immobilizer data, PIN extraction, adding keys, and all-key-lost scenarios. It also performs full-system diagnostics (read/clear fault codes, live data viewing) and provides 30+ maintenance functions. The device supports CAN FD and DoIP protocols and includes two years of free software updates.
Features a 7-inch touchscreen with Android 10—modern and user-friendly
Supports locksmith and technician-level immobillizer programming, including key add and all-key-lost modes
Enables reading/writing immobilizer data and PIN extraction
Offers full-system diagnostics—read/clear fault codes, live data display
Provides 30+ maintenance functions like oil reset, EPB, throttle relearn, and more
Compatible with CAN FD and DoIP communication protocols
Includes two years of free software updates to stay current
Extensive vehicle coverage—ideal for locksmiths, vehicle owners, and technicians
Operating System | Android 10 |
Processor | Quad-core processor 1.5GHz |
Memory | 2G RAM, 64G ROM |
Display | 7.0-inch touch screen with 1024×600 resolution |
Communication Method | Wired |
Connectivity | DB15 TO VGA, USB Type-C, WIFI 2.4/5G |
Sensors | Gravity Accelerometer, Ambient Light Sensor |
Auto Input/Output | Microphone, Speaker |
Battery | 2500mAh, 7.3V lithium-polymer battery |
Working Voltage | 9-36V |
Operating Temperature | -10 to 40℃ |
Storage Temperature | -40 to 60℃ |
Humidity | <90% |
Protocol compatibility | CANFD, DOIP |
