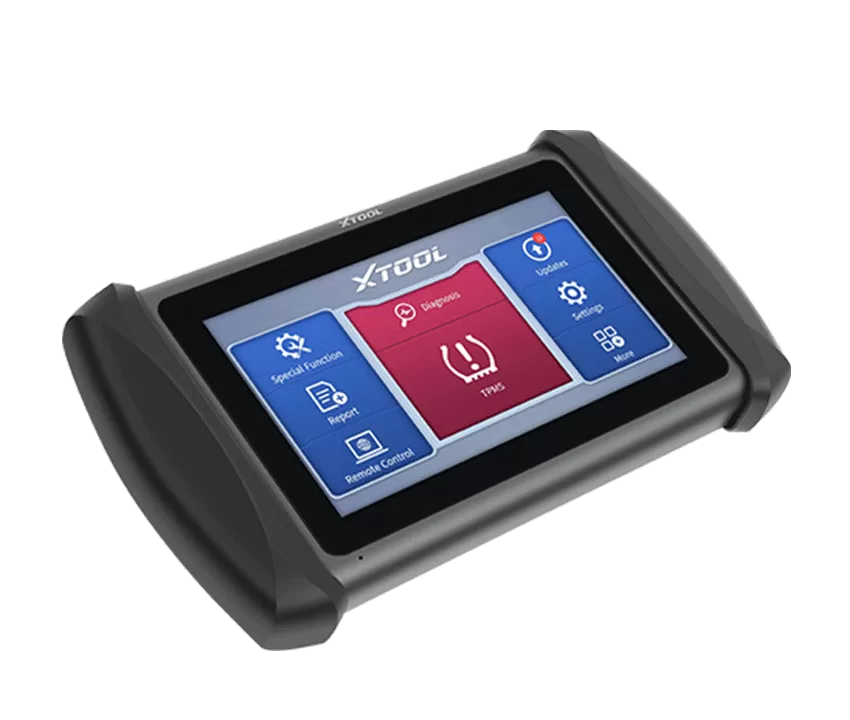

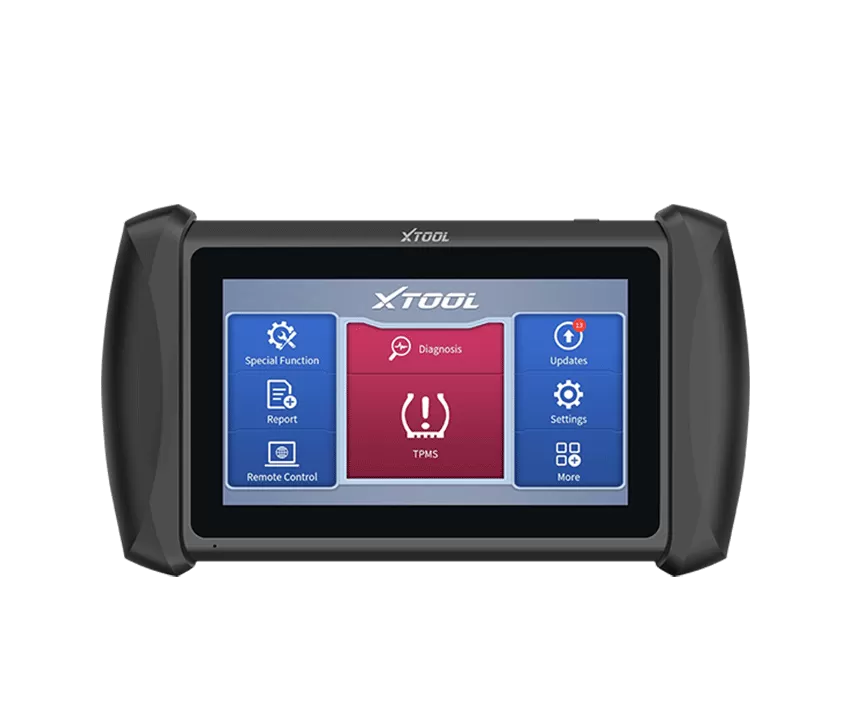

InPlus IP819TP is an integrated automotive TPMS diagnostic system featuring a 7-inch LCD screen and running Android 10 with a highly customized diagnostic interface. It has a built-in TP module that supports sensor detection, system diagnostics, XTOOL sensor programming, OEM sensor information query, and learning procedures. It also provides complete OBDII functionality and full vehicle system diagnostics, covering over 98% of vehicle models, suitable for more than 4,000 models worldwide.
Equipped with a 7-inch capacitive touchscreen with 1024×600 resolution for clear display
Runs Android 10 operating system for a friendly interface and smooth operation
Built-in quad-core 1.50GHz processor ensures stable performance
Provides 2GB RAM and 32GB ROM storage for fast data processing
Supports Bluetooth 4.2, WiFi 2.4/5G, and USB 3.0 for flexible communication
Built-in 5000mAh lithium-polymer battery supports up to 6 hours of continuous operation
Covers 31 common service functions including throttle matching, ABS bleeding, maintenance light reset, EPB testing, SAS, BMS, injector coding, DPF regeneration, and more
This kind of XTOOL TPMS tool supports over 4,000 vehicle models worldwide, covering more than 98% of vehicles for different markets
Operating System | Android 10 |
Processor | 4-Core 1.50GHz |
Memory | 2G RAM, 32G ROM |
Display | 7-inch capacitive touch screen with 1024×600P resolution |
Communication Method | BT 4.2 | WIFI 2.4/5G | Wired Connection |
Connectivity | USB 3.0 |
Sensors | Gravity Accelerometer, Ambient Light Sensor |
Auto Input/Output | Microphone, Speaker |
Battery | 5000mAh, 3.7V lithium-polymer battery |
Working Voltage | 3.6 to 4.2V |
Power Voltage | DC 12V |
Battery Life (Operating) | 6 hours |
Operating Temperature | -10 to 40℃ |
Storage Temperature | -40 to 60℃ |
Humidity | <90% |
Dimension (L×W×H): | 249.0×142.0×33.5 mm |
