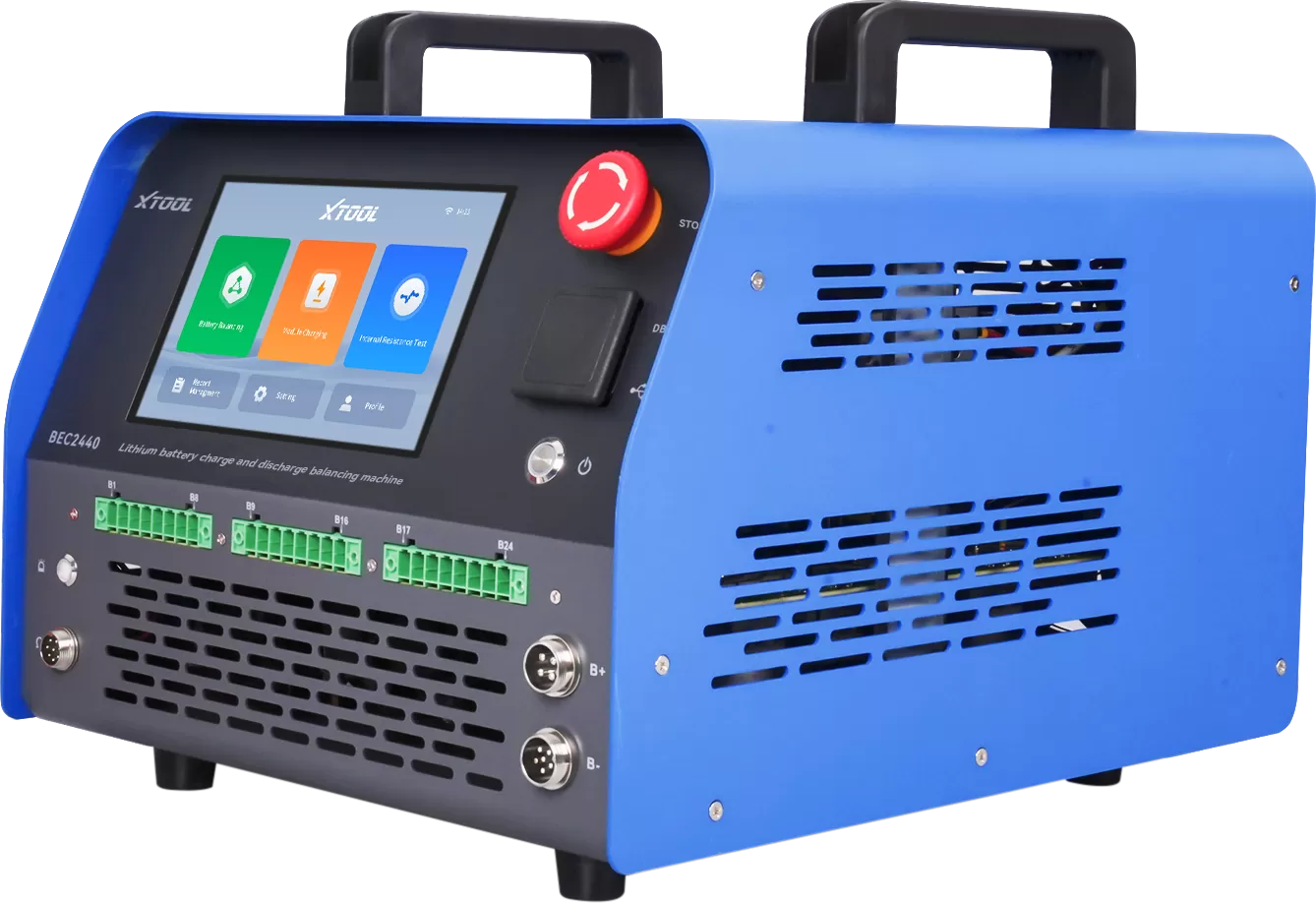

The XTOOL BEC2440 is a flagship 24-channel battery balancer built for professional EV and lithium battery service. With 40A charging and 20A discharging current across 24 synchronous channels, it brings higher efficiency and greater precision to traction battery balancing, charging, and testing.
Built-in internal resistance testing and automated report generation turn complex battery work into a clear, documented workflow — so every cell is balanced, measured, and verified with confidence. Four-layer safety protection guards against overcurrent, short-circuit, reverse-polarity, and overtemperature, keeping both your team and the battery pack safe.
As a core part of XTOOL's One-Stop EV Service Solution, the BEC2440 helps repair shops handle modern lithium battery service in a single, reliable system. Faster balancing, accurate diagnostics, and dependable safety — engineered for the demands of today's EV aftermarket.
24-Channel Synchronous Balancing: Balance up to 24 channels at the same time for faster, more efficient battery service.
40A High-Current Charging: Maximum 40A charging current handles demanding traction battery workloads with ease.
20A Controlled Discharging: Maximum 20A discharging delivers stable, precise control throughout the cycle.
Built-In Internal Resistance Testing: Measure cell internal resistance directly — no extra equipment needed.
Automated Data Reports: Generates test reports automatically for clear records and traceable results.
Four-Layer Safety Protection: Overcurrent, short-circuit, reverse-polarity, and overtemperature protection in one system.
Higher Efficiency & Precision: Engineered to raise both throughput and accuracy in traction battery balancing.
Part of the One-Stop EV Solution: Works within XTOOL's complete EV service toolchain for fully compliant battery repair.
Balancing Accuracy | 1mV |
Input Voltage | AC220V/110V±15% 50Hz |
Device Size | 490.75x314x341.5(mm) |
Maximum Allowable Charge Current | 15A |
Voltage Sampling Accuracy | ±0.10%FS |
Operating Temperature | -10℃ to 40℃ |
Device Weight | 13kg |
Storage Temperature | -20℃ to 50℃ |
Power Consumption | <100W |
Balancing Voltage | 2V~4.2V (adjustable) |
